DOW / Filmtec Membranes

Membranes

Téléchargez la fiche technique
Thin-Film Composite (TFC Membrane) design
The TFC membrane consists of three layers: a polyester support web, a microporous polysulfone interlayer, and an ultrathin barrier coating on the top surface.

FilmTec thin-film composite membranes (TFC membranes) are the world’s leading RO membrane for water purification systems. To date, more than 1,000,000 FilmTec membranes have been installed in water treatment systems worldwide.

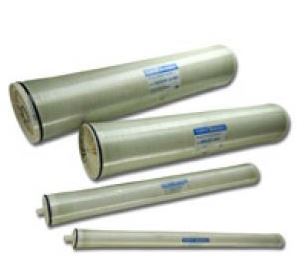

FilmTec Membranes

Tapwater Commercial RO

2.5"x40” and 4"x40” membranes, TW30, XLE, LP, BW30, TW30HP

Tapwater Industrial RO

4”x40” and 8”x40” membranes, l BW30, BW30LE, LE, XLE, FR, RO, HSRO

Seawater RO Elements

2.5"x40”, 4”x40” and 8"x40” Seawater membranes, SW30, SW30HR, SW30HRLE

Nanofiltration Elements

4”x40” and 8"x40” Nanofiltration membranes, NF90, NF270, NF200, NF

Semiconductor Grade

8" Dia. Semiconductor SG, SG30

Residential/Home Drinking Water Elements
Model No. Permeate
Flow Rate (GPD)		 Test Pressure (psig) Stabilized Rejection
TW30-1812-24 24 50 98% Download
TW30-1812-36 36 50 98% Download
TW30-1812-50 50 50 98% Download
TW30-1812-75 75 50 98% Download
TW30-1812-100 100 50 90% Download

Tape-Wrapped Filmtec Membranes for Commercial Applications
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
TW30-2026 220 225 2"x26" 99.0% Download
TW30-2514 200 225 2.5"x14" 99.0% Download
TW30-2521 325 225 2.5"x21" 99.0% Download
TW30-2540 850 225 2.5"x40" 99.5% Download
XLE-2540 850 100 2.5"x40" 99.0% Download
TW30-4014 525 225 4"x14" 99.0% Download
TW30-4021 900 225 4"x21" 99.0% Download
XLE-4021 1,025 100 4"x21" 99.0% Download
TW30-4040 2,400 225 4"x40" 99.5% Download
LP-4040 2,700 145 4"x40" 99.2% Download
XLE-4040 2,600 100 4"x40" 99.0% Download
LP-2540 1,000 (3.8) 145 2.5"x40" 99.0% Download
XLE-2521 365 100 2.5"x21" 99.0% Download
LE-4040 2500 (9.5) 150 4"x40" 99.0% Download

FRP-Wrapped RO Elements for Light Industrial Applications
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
BW30-2540 850 225 2.5"x40" 99.5% Download
BW30-4040 2,400 225 4"x40" 99.5% Download
BW30LE-4040 2,300 150 4"x40" 99.2% Download
LC HR-4040 2,900 225 4"x40" 99.7% Download
LC LE-4040 2,500 125 4"x40" 99.2% Download

High Rejection Brackish Water Elements
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
BW30-4040 2,400 225 4"x40" 99.5% Download
BW30-365 9,500 225 8"x40" 99.5% Download
BW30-400 10,500 225 8"x40" 99.5% Download
BW30-400/34 10,500 225 8"x40" 99.5% Download
BW30-440 11,500 225 8"x40" 99.5% Download
BW30HR-440 -- -- -- -- Download

Low Energy RO Elements
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
BW30LE-4040 2,300 150 4"x40" 99.2% Download
LE-400 12,000 150 8"x40" 99.3% Download
BW30LE-440 11,500 150 8"x40" 99.2% Download
XLE-440 12,700 100 8"x40" 99.0% Download
LE-440 13,200 150 8"x40" 99.3% Download
HRLE-440 12,650 150 8"x40" 99.3% Download
XFRLE-400/34 11,500 150 8"x40" 99.4% Download

Fouling Resistant Elements
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
BW30-365-FR 9,500 225 8"x40" 99.5% Download
BW30-400-FR 10,500 225 8"x40" 99.5% Download
BW30XFR-400/34 11,500 225 8"x40" 99.65% Download
BW30FR-400/34 10,500 225 8"x40" 99.5% Download
BW30FR-400 10,500 225 8"x40" 99.5% Download
BW30FR-365 9,500 225 8"x40" 99.5% Download

Full-Fit Elements for Sanitary Water Purification
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
RO-4040-FF 1,650 225 4"x40" 99.5% Download
HSRO-4040-FF 1,900 150 4"x40" 99.5% Download
RO-390-FF 11,500 225 8"x40" 99.5% Download
HSRO-390-FF 9,000 150 8"x40" 99.5% Download
Marine Elements - 2.5" & 4" Diameter
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
SW30-2514 150 800 2.5"x14" 99.75% Download
SW30-2521 300 800 2.5"x21" 99.4% Download
SW30-2540 700 800 2.5"x40" 99.4% Download
SW30-4021 800 800 4"x21" 99.4% Download
SW30-4040 1,950 800 4"x40" 99.4% Download
SW30HRLE-4040 1,550 800 4"x40" 99.4% Download

Large Diameter Seawater Elements
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
SW30-380 9,000 800 8"x40" 99.4% Download
SW30HR-320 6,000 800 8"x40" 99.75% Download
SW30HR-380 6,000 800 8"x40" 99.7% Download
SW30HRLE-4040 7,500 800 8"x40" 99.75% Download
SW30HRLE-400 7,500 800 8"x40" 99.75% Download
SW30XLE-400 9,000 800 8"x40" 99.7% Download
SW30HR LE-400 7,500 800 8"x40" 99.75% Download
SW30XLE-440i 9,900 800 8"x40" 99.6% Download
SW30HRLE-440 8,200 800 8"x40" 99.8% Download
SW30XHR-400 6,000 800 8"x40" 99.75% Download
SW30ULE-400 11,000 800 8"x40" 99.7% Download
SW30HRLE-370/34 9,700 800 8"x40" 99.8% Download
SW30-8040 6,000 800 8"x40" 99.1% Download
SW30-6040 2,100 800 7”x40” 99.0% Download

High Rejection Nanofiltration
Model No.

Permeate Flow Rate* (GPD)

 Test Pressure (psig) Size
(Dia."xLength")		 Stabilized Rejection*
NF90-2540 680 70 2.5”x40” 97.0% Download
NF90-4040 1,500 70 4"x40" 85-95% Download
NF90-400 7,500 70 8"x40" 85-95% Download
Lowest Pressure Nanofiltration
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
NF270-2540 850 70 2.5”x40” 97.0% Download
NF270-4040 2,500 70 4"x40" 40-60% Download
NF270-400 12,500 70 8"x40" 40-60% Download
Nanofiltration for Pesticide Removal
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
NF200-400 6,800 70 8"x40" 35-50% Download

Nanofiltration for Process Applications
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure
(psig)		 Size
(Dia."xLength")		 Stabilized Rejection*
NF-2540 920 130 2.5"x40" >99% Download
NF-4040 3,050 130 4"x40" >99% Download
NF-400 13,700 130 8"x40" >99% Download
Semiconductor Grade RO Elements
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure (psig) Size (Dia"xLength")
SG30-400 10,200 225 8"x40" Download
SG30LE-430 10,000 150 8"x40" Download
SG30LE-440 10,200 150 8"x40" Download
SG30LE-400 9,500 150 8"x40" Download
SG30-400/34 10,200 225 8"x40" Download
Dow Ultra Filtration Modules
Model

Type

 Membrane
Area
ft2 (m2)		 Module
Volume
gallons
(liters)		 Weight
-
Empty
lbs (kg)		 Weight
- Filled
lbs (kg)
SFP-2660 Pretreatment 355 (33) 4.2 (16) 55 (25) 90 (41) Download
SFD-2660 NSF/ANSI
61
Drinking Water		 355 (33) 4.2 (16) 55 (25) 90 (41) Download
SFP-2860 Pretreatment 549 (51) 9.3 (35) 106 (48) 183 (83) Download
SFD-2860 NSF/ANSI
61
Drinking Water		 549 (51) 9.3 (35) 106 (48) 183 (83) Download
SFP-2880 Pretreatment 829 (77) 10.3 (39) 135 (61) 220 (100) Download
SFD-2880 NSF/ANSI
61
Drinking Water		 829 (77) 10.3 (39) 135 (61) 220 (100) Download
Other Products
Model No.

Permeate
Flow Rate* (GPD)

 Test Pressure (psig) Size (Dia"xLength")
TW30HP-4611 1,200 225 4.6”x11” Download
TW30HP-4619 1,450 225 4.6”x19” Download
TW30HP-4641 5,200 225 4.6”x41” Download
